TICkit 63/74 Product Line

All TICkits require a download cable and PC software to be programmed. The Integrated Development software is available for free download for non-commercial use. These items can be downloaded or purchased from the Development Tools page.



The TICkit 63/74 family consists of two interpreters. The TICkit 74 interpreter is a 40 pin IC which has 29 additional I/O pins and two 8-bit A/D converters. The TICkit 63 interpreter is a 28 pin IC which has 18 additional I/O pins.



Both interpreters share the following capabilities:



  • IBM PCAT Keyboard Interface

  • Multiple RC Servo Pulse Generation

  • Real-Time Keeping in Background

  • RS232 in Background

  • I2C in Background

  • Dallas One-Wire Support

  • 32 Bit Floating Point Support

  • Up to 256K Bytes EEprom

  • Audio Playback from EEprom

  • 2 PWM Outputs in Background

  • Rotary Encoder Interface



The TICkit 74 (40 pin version of the controller)

TICkit 74:  Previous revisions are available upon request.




TICkit 74 Getting Started Package

P/N#: T74H256-GSP

Price: $135.00

BUY

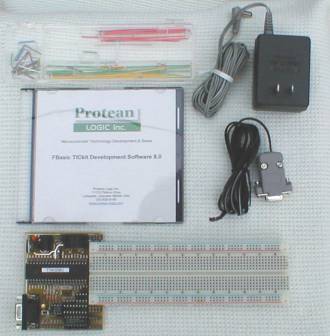

The TICkit 74 Getting Started Package (GSP) contains everything you need to get started programming and designing using the TICkit 74 processor. With its own solderless breadboard and +5, +/- 9 volt supplies, it is a complete mini-lab. It even comes with a selection of wire jumpers for use with solderless breadboard.
TICkit 74GSP  related links
HTML cut sheet
TICkit User Manual


TICkit 74 Prototyping Laboratory

P/N#: T74H256L-LAB

Price: $115.00

BUY

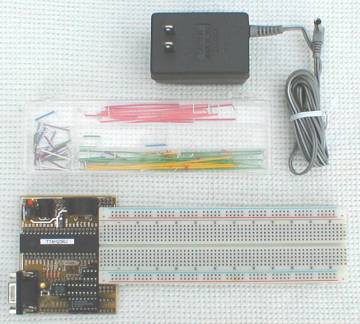

The TICkit 74 Prototyping Lab (LAB) is the same hardware development tool found in the getting started package. The LAB does not come with a download cable or software. This is perfect for people who want another place to breadboard projects.
TICkit 74LAB  related links
HTML cut sheet
TICkit User Manual


TICkit 74 Interpreter IC

20MHz Xtal, 400KHz EEprom

P/N#: T74H256L-IC

Price: $25.00

BUY

The TICkit 74 Interpreter IC is the heart of a TICkit system. You will need to add between one and eight 24LC256 serial EEproms to make a functional system.

TICkit 74  related links
HTML cut sheet
TICkit User Manual

TICkit 74F Interpreter IC

20MHz Xtal, 1MHz EEprom

P/N#: T74F256L-IC

Price: $25.00

(special Order)

BUY

The TICkit 74F Interpreter IC is the fast version of its cousin the 74H. This IC is optimized to use 1MHz clocked EEproms. This version is only useful For larger programs or data that require faster access. You can use up to eight 24FC256 serial EEproms.

TICkit 74F related links
HTML cut sheet
TICkit User Manual

TICkit 74X Interpreter IC

4MHz Xtal, 400KHz EEprom

P/N#: T74X256L-IC

Price: $25.00

(special Order)

BUY

The TICkit 74X Interpreter IC is designed for low power situations where a 4MHz processor clock is sufficient. You can use up to eight 24LC256 EEproms or 24AA256 EEproms to complete a system.

TICkit 74X related links
HTML cut sheet
TICkit User Manual





The TICkit 63 (28 pin version of the TICkit controller)

TICkit 63:  Previous revisions are available upon request.


TICkit 63 Getting Started Package

P/N#: T63H256L-GSP

Price: $125.00

BUY

The TICkit 63 Getting Started Package (GSP) contains everything you need to get started programming and designing using the TICkit 63 processor. With its own solderless breadboard and +5, +/- 9 volt supplies, it is a complete mini-lab. It even comes with a selection of wire jumpers for use with solderless breadboard.
TICkit 63GSP  related links
HTML cut sheet
TICkit User Manual


TICkit 63 Prototyping Laboratory

P/N#: T63H256L-LAB

Price: $105.00

BUY

The TICkit 63 Prototyping Lab (LAB) is the same hardware development tool found in the getting started package. The LAB does not come with a download cable or software. This is perfect for people who want another place to breadboard projects.
TICkit 63LAB  related links
HTML cut sheet
TICkit User Manual


TICkit 63 Processing Module

P/N#: T63H256L-MOD

Price: $59.00

BUY
The TICkit 63 module (MOD) is a complete TICkit system in a 40 pin DIP package. Just plug it into a 40 pin IC socket or a solderless breadboard. You supply power and that is it. It even has the connector on it for the download cable.
TICkit 63MOD  related links
HTML cut sheet
TICkit User Manual

TICkit 63 Single Board Computer

P/N#: T63H256L-SBC

Price: $59.00

BUY
The TICkit 63 Single Board Computer (SBC) is a complete TICkit system on a small (approx 2.5" square) prototyping board. A 5 volt low drop out regulator is included as well as solder pad patters for an Xtender IC another EEprom and a plain 8 pin pattern. Just connect a battery or a wall mount power supply and you are ready to build your prototype.
TICkit 63SBC  related links
HTML cut sheet
TICkit User Manual

TICkit 63 Interpreter IC

20MHz Crystal,    400KHz EEprom

P/N#: T63H256L-IC

Price: $18.00

BUY
The TICkit 63 Interpreter IC is the heart of a TICkit system. You will need to add between one and eight 24LC256 serial EEproms to make a functional system.
TICkit 63  related links
HTML cut sheet
TICkit User Manual

TICkit 63F Interpreter IC

 20MHz Crystal,
 1MHz EEprom

P/N#: T63F256L-IC

Price: $18.00
(special order)

BUY
The TICkit 63F Interpreter IC is the fast version of its cousin the 63H. This IC is optimized to use 1MHz clocked EEproms. This version is only useful For larger programs or data that require faster access. You can use up to eight 24FC256 serial EEproms.
TICkit 63F  related links
HTML cut sheet
TICkit User Manual

TICkit 63X Interpreter IC

 4MHz Crystal,
 400KHz EEprom

P/N#: T63X256L-IC

Price: $18.00

(special order)

BUY
The TICkit 63X Interpreter IC is designed for low power situations where a 4MHz processor clock is sufficient. You can use up to eight 24LC256 EEproms or 24AA256 EEproms to complete a system.
TICkit 63X  related links
HTML cut sheet
TICkit User Manual
